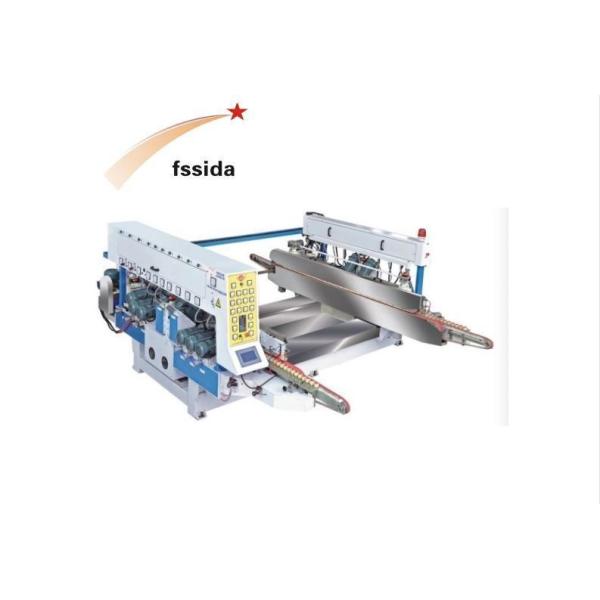

ST 2025 Horizontal Automatic Glass Double Edging Polishing Machine The madel glass edging machine can process glass flat edge with 45 degree arris. This machine also can process 2 parallel edges at same time.it is combined by glass loading table, glass transfer table, and two glass double edging machines. It is fully automatic , glass finish four side edging and polishing at one pass.
Advantage 1.The machine uses one set of PLC control system. It can count the processing amount automatically.
2.Pneumatic assistant polishing for the last 3 polishing wheels for bottom edge.
3.With the use of high quality electric parts
Shape glass double edging line
Machine in workship
| Spindles | 20 (eachs side has 10 polishing wheel |
| Max. glass width | 2500mm |
| Min. glass size: | 200x200mm |
| Glass thickness: | 4-26mm |
| Maximum flat edging level: | 3mm |
| Maximum arrising width: | 2.5mm |
| Arrise angle: | 45° |
| Working speed | 0.5-11.0m/min |
| Installed power | 50kw |
| Compressor air consumption | 1 It/min |
| Pressure | 6kg/square cm |
| Overall dimension | 4400x4400x1800mm |
| Weight | 4000kg |
Packaging and delivery
Company Founded in 2010, Foshan Star Glass Machinery Co., Ltd. is a high-tech enterprise specializing in the
production, research and development and sales of glass deep processing machinery. The company is
located in Foshan City, a major glass machinery center.
The company is committed to the production of glass radiant tempering furnace, convection tempering
furnace, flat bending dual-purpose tempering furnace, automotive glass bending furnace, non
autoclave PVB laminating production line.
After years of hard work and exploration, the company has obtained a number of national patents, and
its technology is ahead of the domestic level. The products sell well all over China and are exported to
Australia, the United States, the Middle East, India, Vietnam, South America and other places.
Companies adhering to the principle of quality first, service-oriented, and constantly improve the
company's level and product quality, and strive to create a skilled, high-quality team. We will sincerely
cooperate with new and old customers at home and abroad with sincerity and jointly develop the
bright road of glass machinery manufacturing industry.
